About Us

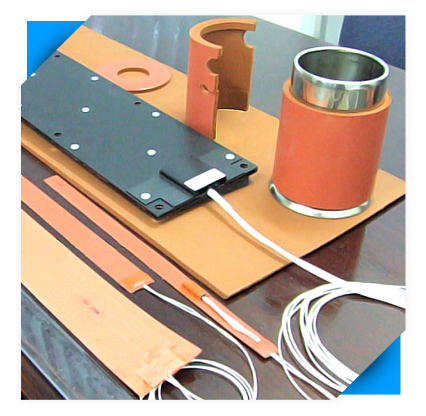

We specialized in silicone rubber heating system. Our heaters are manufactured in Singapore. All raw materials are industrial grade and carries related agency approvals (UL, RoHS, etc ).

Our engineers are experienced in design, repair on electronic equipments; and test jigs fabrication. We provide customize technical solution based on customer requirements.


Products

ELECTRONIC

Click to enlarge +

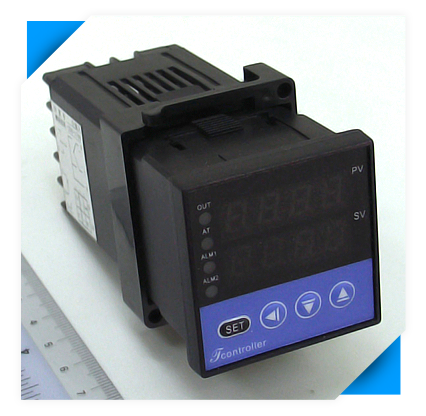

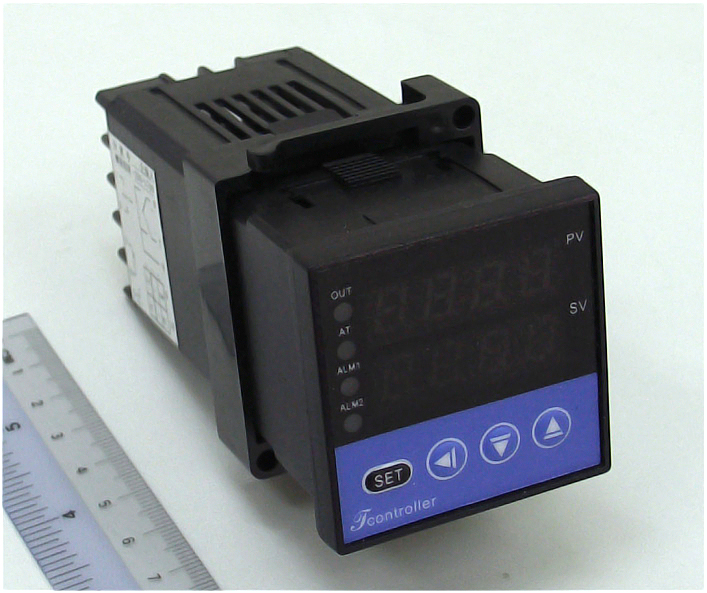

FUZZY LOGIC, PID TEMPERATURE CONTROLLER

SPECIFICATIONS:
Sensor Input : Thermocouple Type K, S, R, E, J and PT100, Voltage, Current.
Range :K (0-1300℃), S (0-1700℃), R (0-1650℃), E (0-800℃), J (0-1000℃), PT100 (-200-600℃), Customize voltage and Current.
Accuracy:0.3%±1 digit (LSB)
Measuring Resolution:0.1℃/ 1 ℃
Power Supply : Universal 85-264Vac 45-65Hz
Power Consumption : < 5 W
Operating environment : 0-50℃, RH

CONTROL OUTPUT OPTIONS:
Relay Contacts : AC220V/5A resistive load.
DC voltage:For SSR trigger, >12V。20mA

TERMS AND CONDITIONS:

PRICE:
Warrantee against manufacture defects : 12 months
S&H :
Free to Singapore Address


Click to enlarge +

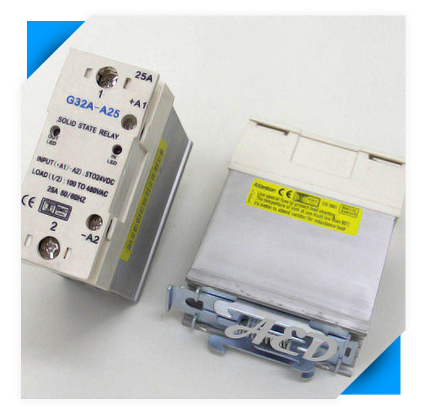

25A SOLID STATE RELAY, INTEGRATED WITH SLM HEATSINK, DIN-RAIL MOUNT.

Input Voltage : 5 V - 24Vdc
Input indicator : LED
Guarantee Off Vin : 1.0Vdc or less
Input current max. : 14 to 20 mA, (built in current limit)
Input Reverse voltage : maximum 24Vdc Control Output (AC) ( At 25 C)
Output Indicator : LED
Operating Voltage : 40 - 480Vac
Withstand Peak Voltage : 800Vpk
Maximum Load Current : 25A
Minimum Load current : 100mA
Max. Leakage current : < 3.5 mA
Isolation between Input and Output (Vrms) : more than 2000V
Isolation to external casing (Vrms) : more than 2000V
Operating Temperature : -40 to 80 degree C RoHS compliance ,
CE approved ( Directive 73/23/EEC)


Click to enlarge +

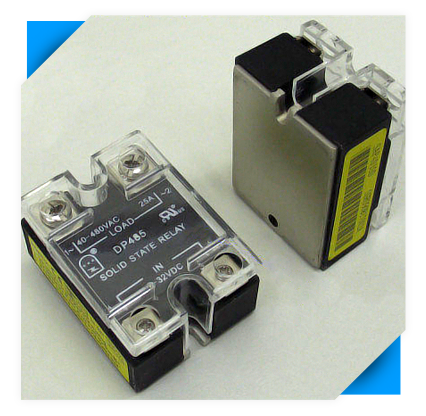

25A SOLID STATE RELAY MODULE:


Input Voltage : 3 V - 32Vdc
Input indicator : LED
Guarantee Off Vin : 1.0Vdc or less
Input current max. : 25mA
Control Output (AC) Operating Voltage : 40 - 480Vac
Withstand Peak Voltage : 800Vpk
Maximum Load Current : 25A
Minimum Load current : 100mA
Max. Leakage current : 5 mA
Casing Insulation : 4000Vac 50/60Hz 60sec
Operating Temperature : -30 to 80 degree C RoHS compliance ,
UL approved.
Size 55x44x23 mm, with protective cover.




Click to enlarge +

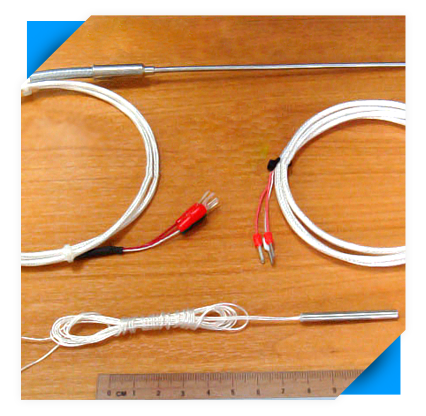

DIN CLASS-A RTD (PT100) TEMPERATURE SENSOR


Temperature range : -50 to 300 degree C
Element type : 100 ohm @ 25 C. DIN class A
Sheath material : Stainless Steel
Terminations : 2, 3, or 4 wires
Sheath Diameter : 3 , 4, 5, 6, 8 mm
Sheath length : customer specified
Flange : Optional
Others: MgO filled, at room temperature RH









Click to enlarge +

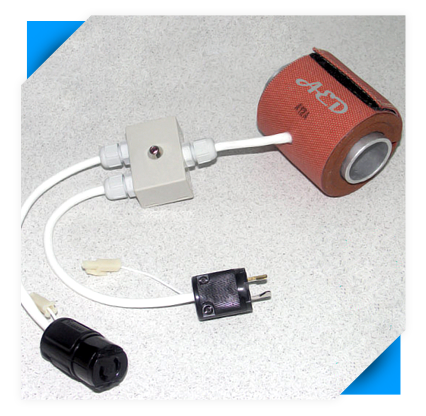

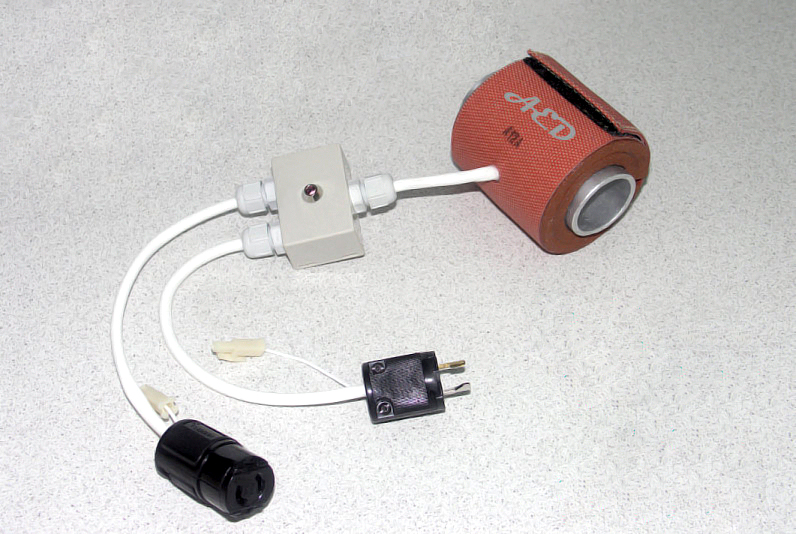

T18 SERIES PIPE LINE HEATING SYSTEM


Optional :
Temperature Sensor (RTD, TC , NTC)
Thermal Fuse

Over temperature thermostat (normally ON)
Low temperature thermostat (normally OFF)

Electronic Module : Heater Power-ON indicator module
Electronic Module : In-Line Temperature Controller ( heater integrated sensor and controls)
Electronic Module : Heater failure detection
Electronic Module : Temperature sensor to 4-20mA output (for long line temperature sensing)
Electronic Module : Customize programmable timer control
Electronic Module : Customize design/circuit meeting specific application needs

Wire harness, include plug and sockets, for linking up multiple heaters along the pipe/gas line

Performance test reports.



Click to enlarge +


We design and manufacture heating system per customer specification.


Our engineers are experienced in design and fabricate high performance cartridge heaters, tubular heaters, flexible heaters, temperature controllers, and power driver module.

We have our own version of proprietary, long operating life hybrid relay circuit (patented in China) and develop proprietary temperature control parameters/methods for effective temperature control for difficult operating temperature environment.

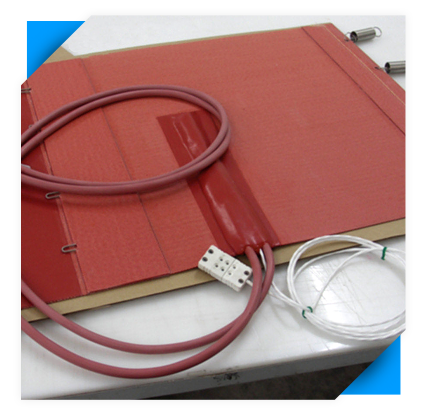

Above picture shown a customer built large surface Air-Heater which is slim and easy to install. High quality construction, sealed against moisture, suitable for environmental RH control.

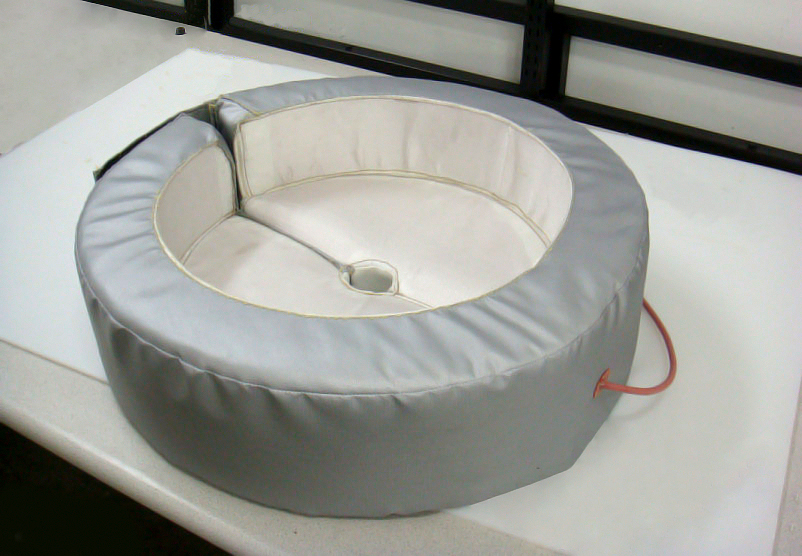

We design and built jacket heaters complete with sensor, thermostat controls and wiring system. Each jacket heater can be factory life tested with Report.

Customize insulation system can be designed. We supply different insulation material type, custom shape and size to match application test piece.




HEATING SYSTEMS

Click to enlarge +


T18 SERIES PIPE LINE HEATING SYSTEM


Optional :
Temperature Sensor (RTD, TC , NTC)
Thermal Fuse

Over temperature thermostat (normally ON)
Low temperature thermostat (normally OFF)

Electronic Module : Heater Power-ON indicator module
Electronic Module : In-Line Temperature Controller ( heater integrated sensor and controls)
Electronic Module : Heater failure detection
Electronic Module : Temperature sensor to 4-20mA output (for long line temperature sensing)
Electronic Module : Customize programmable timer control
Electronic Module : Customize design/circuit meeting specific application needs

Wire harness, include plug and sockets, for linking up multiple heaters along the pipe/gas line

Performance test reports.



Click to enlarge +


CUSTOMIZE HEATING BLOCKS/ MODULE

Optional :

Heating Block Material, shape and heater construction

Heater with Earth Plane ( Metallic layer, shielded)

Temperature Sensor

High temperature protection, Thermostat

Power Cable type, power Plugs / Sockets,

Customized Heating Zone

Fastening Options


Click to enlarge +


H23 SERIES HEATING SYSTEM

We fabricate heater per customer requirements.


This thick wall series heating system, that all of its inner surface of the "wheel shape" heating block is evenly heated, and also well insulated from external temperature interference.













Click to enlarge +

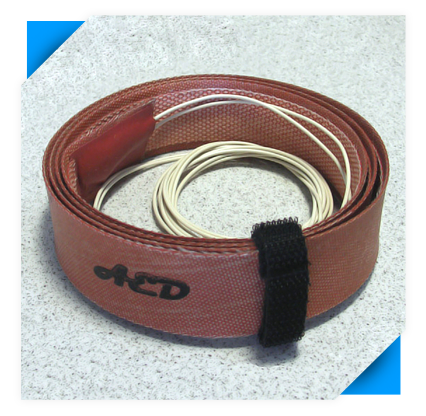

HEATING STRIPS

Optional built-in:

Temperature Sensor
Thermal Fuse
Thermostat

Application:
For heating small OD pipes

Width: 20, 25 or 30mm
Length: 1, 2, 3.5 or 5m







Click to enlarge +

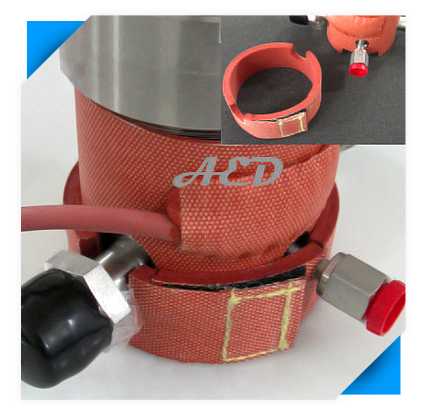

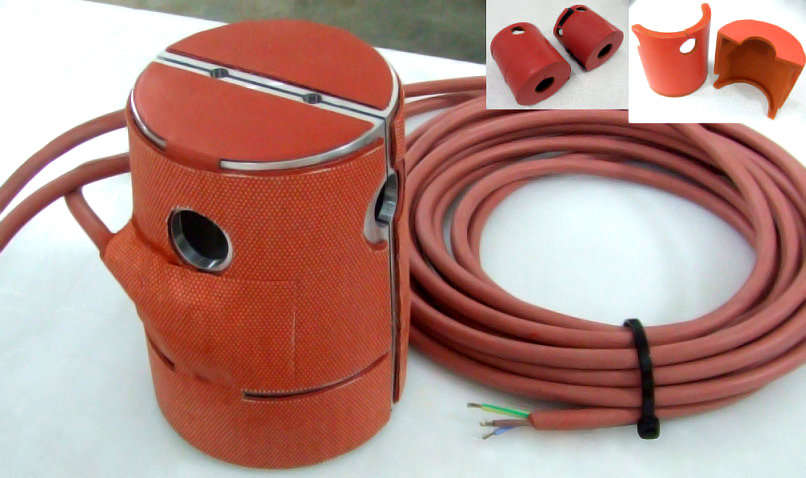

VALVE HEATER

Optional built-in:
Copper Shield Layer (ground terminal)
Temperature Sensor
Thermal Fuse
Insulation Jacket












Click to enlarge +


For cylinder shape heat load. Multiple springs provide consistent and even holding strength after repeat mountings. Results : repeatable, stable, well distributed heat performance.

















»
